Winda kotwiczna Quick Prince DP2E 600/600D
- Dodaj recenzję:
- Kod: Winda kotwiczna Quick Prince DP2E 600/600D
- Producent: Quick Nautical Equipment
- Kod producenta: Prince DP2E 600/600D
-
Dostępność:
Jest
(1 szt.)
Czas realizacji: Zapytaj o dostępność

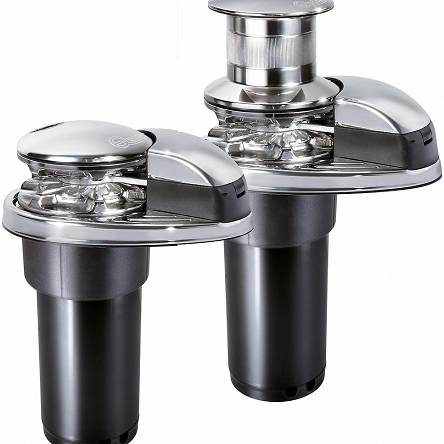

Winda kotwiczna elektryczna firmy Quick - model Prince DP2E 600/600D
| Winda dla łodzi od 6 do 10 m (20- 33 ft) | ||
| DP2E 600 W | 6 - 9 m | 20 - 29 ft |
| DP2E 1000/1100 W | 8 - 10 m | 23 - 33 ft |
Winda kotwiczna elektryczna firmy Quick - model Prince DP2E 600/600D
| Winda dla łodzi od 6 do 10 m (20- 33 ft) | ||
| DP2E 600 W | 6 - 9 m | 20 - 29 ft |
| DP2E 1000/1100 W | 8 - 10 m | 23 - 33 ft |
| Standard version | DP2E 600 / 600 D | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | |
| Maximum pull | 620 Kg / 1367 lb | |
| Maximum working load | 200 Kg / 441 lb | |
| Working load | 65 Kg / 143 lb | |
| Current absorbtion @ working load (1) | 60 A | |
| Maximum chain speed (2) | 22,9 m/min / 75.1 ft/min | |
| Maximum chain speed @ working load (2) | 18.6 m/min / 61.0 ft/min | |
| Weight - DP2E - [without drum] | 8,3 Kg / 20.9 lb | |
| Weight - DP2E D - [with drum] | 9,1 Kg / 23.6 lb | |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Wymiary
Deck thickness:
20÷40 mm (25/32”÷1”9/16)
On request, shaft and studs can be supplied
for greater deck thicknesses.
Dimensions in mm (inch)
Standardowy zakres dostawy
| Contactor units |
| MODELS | T6415-12 | T6415-24 |
| 500 W | 12 V | |
| 800 W | 12 V | 24 V |
Nylon handle
Wyposażenie opcjonalne
 |
 |
 |
  |
  |
| Hydraulic magnetic circuit breaker |
UP/DOWN Switches | handheld remote control |
Chain counters |
Radio remote control |
